BB2590/U Battery Pack With SMBus

Features

BB2590/U Battery With SMBus

High performance Li-Ion rechargeable battery pack and High energy density.

Durable high impact housing and connector enclosure with gold plated pins for optimal conductivity and re-connectivity.

Dual Stage of charge indicators with tactical display screen. Protection against short circuit and improper charging.

Testing specification

  • Impact tested
  • Altitude tested
  • Drop tested
  • Voltage tested
  • Mechanical shock tested
  • Vibration tested
  • Leakage
  • Insulation resistance



Specification

Product Information
Item code BB2590/U With SMBus

Technical Information
Dimension 112.5mm x 63mm x 128.5mm
Weight 1.36kg
Max. voltage 16.8v or 33.6v
Typical voltage 14.4v or 28.8v
Nominal capacity Mode: 13.2Ah (15v), Mode 6.6Ah (30v)
Cycle life >500 cycles
Connector SC-C179495 with gold plated pins
Operating temperature -20°C to +55°C
Strorage temperature -20°C to +55°C
Self discharge <5% per month
Transporation Class 9 dangerous goods
Shelf life 5 years under controlled storage
Application Rugged portable electronics, Robotics, MIlitary communication, AUV's and UUV's
Casing material Enforced ABS
Disposal Check with local authorities
Compatible charger GS8002, Ultralife CH0003(6bay) or equivalent

*Specifications are subject to change without prior notice.



Product Factsheet



Images

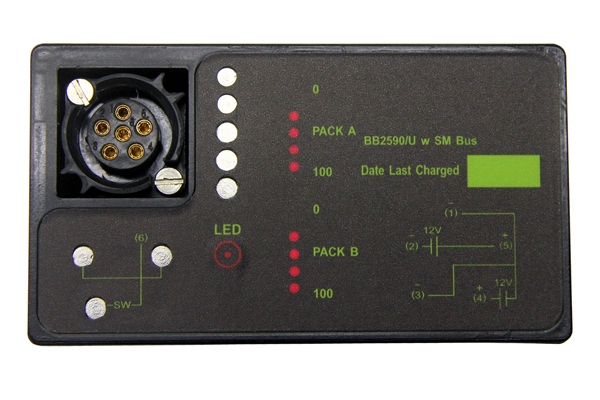

BB2590/U Battery Pack With SMBus
